For more than a decade, American LitePole has sold thousands of light poles we have extensive experience with light pole parts as well. We supply everything from pole caps, pole base covers, hand hole covers, and transformer bases. If you need to repair or replace something on your light pole, no need to buy a whole new pole. We have the light pole parts you’ll need to get your poles working properly and ready to withstand the elements.
Whether you need indoor or outdoor light pole parts. Please feel free to contact us if you have any questions. We will be happy to help you find the light pole parts you need. We may even be able to build something custom for your particular project.
Platforms
Catalog Number |
Luminaire Quantity |
EPA (ft2) |
Weight (lbs) |
TPT-24 |
22-24 |
22.00 |
1121 |
TPT-21 |
19-21 |
18.33 |
622 |
TPT-18 |
16-18 |
15.70 |
567 |
TPT-15 |
13-15 |
12.90 |
466 |
TPT-12 |
10-12 |
10.10 |
364 |
TPT-09 |
0-9 |
7.75 |
270 |
Up-Sweep Arms
Catalog Number |
Arms |
“A” Span (ft) |
Weight (lbs) |
EPA(ft2) |
UP-4S |
1 |
4 |
22 |
1.1 |
UP-6S |
1 |
6 |
29 |
1.5 |
UP-4D |
2@180° |
4 |
40 |
2.1 |
UP-6D |
2@180° |
6 |
54 |
2.8 |
UP-4T |
3@120° |
4 |
57 |
1.8 |
UP-4Q |
4@90° |
4 |
75 |
2.8 |
Cross Arms
Catalog Number |
EPA (ft2) |
Weight (lbs) |
ACR2 |
1.74 |
30 |
ACR3 |
2.73 |
47 |
ACR4 |
3.97 |
68 |
ACR5 |
5.95 |
103 |
ACR6 |
7.37 |
127 |
Spoke Arms
Catalog Number |
Luminaire Quantity |
Weight (lbs) |
EPA (ft2) |
SA-190 |
1 |
8 |
0.3 |
SA-218 |
2 |
11 |
0.4 |
SA-290 |
2 |
11 |
0.4 |
SA-320 |
3 |
15 |
0.5 |
SA-390 |
3 |
15 |
0.5 |
SA-490 |
4 |
18 |
0.6 |
Bull Horns
Catalog Number |
Luminaire Quantity |
Weight (lbs) |
EPA(ft2) |
BH-218 |
2 |
21 |
1.0 |
BH-318 |
3 |
32 |
1.6 |
BH-312 |
3 |
34 |
1.3 |
BH-418 |
4 |
44 |
2.3 |
BH-490 |
4 |
44 |
1.6 |
BH-518 |
5 |
86 |
3.5 |
|
Catalog Number |
Luminaire Quantity |
Weight (lbs) |
EPA (ft2) |
|
BH-100 |
1 |
18 |
0.7 |
|
BH-200 |
2 |
41 |
1.4 |
T-Bases
Catalog Number |
Maximum Lum Mtg. Height (ft) |
Maximum Applied Weight (lbs) |
Bottom Bolt Circle range (in) |
Top Bolt Circle range (in) |
Maximum Anchor Bolt Diameter (in) |
Maximum Top Connecting Bolt Diameter (in) |
TB1 |
55 |
950 |
14 - 15 |
12 - 13.5 |
1.00 |
1.00 |
TB2 |
40 |
550 |
10 - 12 |
10 - 12 |
1.00 |
1.00 |
TB3 |
55 |
900 |
15 - 17.25 |
13 - 15.125 |
1.25 |
1.25 |
Base & Nut Covers
Breakaway Couplings
|
Anchor Bolt Diameter (in) |
|
|
|
BAC-4075 |
0.75 |
5.31 |
2.25 |
1.38 |
BAC-4100 |
1.00 |
6.69 |
2.75 |
1.50 |
BAC-4125 |
1.25 |
6.88 |
3.25 |
1.50 |
Couplings
Catalog Number |
|
CPL-150 |
1.5” Coupling |
CPL-200 |
2.0” Coupling |
CPL-250 |
2.5” Coupling |
CPL-300 |
3.0” Coupling |

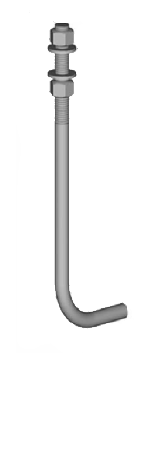

Anchor Bolts
Catalog Number |
“D” (in) |
“L” (in) |
“H” (in) |
AB-075-21 |
0.75 |
17 |
3 |
AB-075-33 |
0.75 |
30 |
3 |
AB-100-40 |
1.00 |
36 |
4 |
AB-125-48 |
1.25 |
42 |
6 |
AB-150-60 |
1.50 |
54 |
6 |
AB-175-60 |
1.75 |
54 |
6 |
Material Specifications
- Anchor Bolts: ASTM F1554 GR. 55
- Heavy Hex Nuts: ASTM A536 GR. DH
- Flat Washers: ASTM F436
- Galvanizing: ASTM A153
Galvanized minimum of 12” from top. Fully galvanized anchor bolts are available.
Tenons
Catalog Number |
Dia. (in) |
Length (in) |
T20R |
2.375 |
5.0 |
T25R |
2.875 |
5.0 |
T30R |
3.500 |
5.0 |
T35R |
4.000 |
5.0 |
Festoon Boxes
Featuring 3x5 Reinforced Rim Welded to Pole
Receptacle & Covers provided by other sources.
